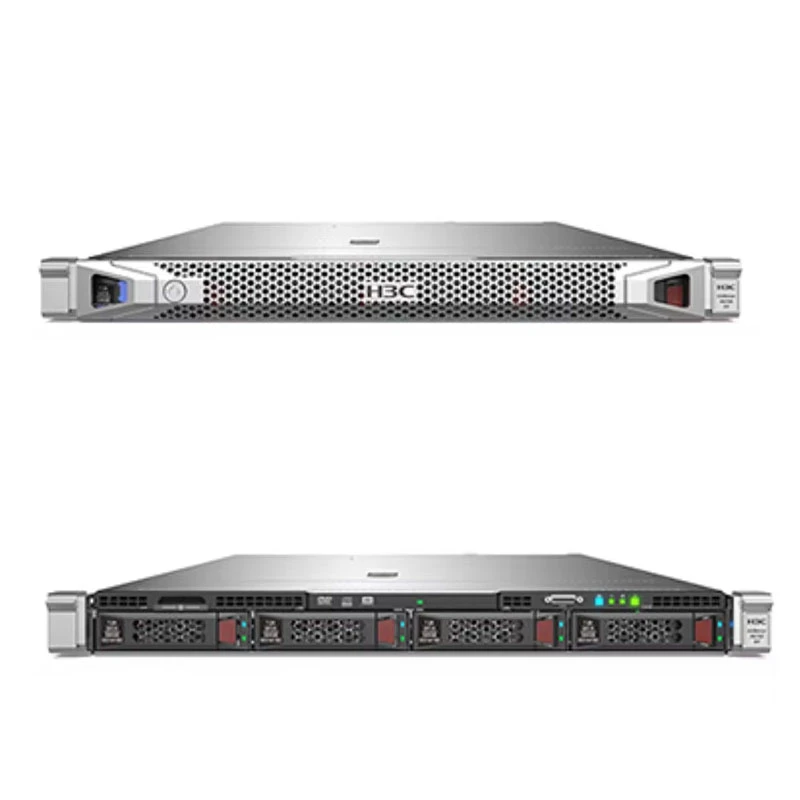

The H3C rack server R4700 G3 provides enhanced performance in high-density scenarios and delivers extraordinary computing performance with Intel processors in a 1U space. Its industry-leading system design brings ease of use, enhanced security, and high availability.

As an advanced high-performance dual-processor 1U rack server, the H3C rack server R4700 G3 uses the most recent Intel' Cascade Lake processor or Cascade Lake Refresh (CLX R) processor series CPU (4000 series ,5000 series ,6000 seris ,8000 series) and six-channel 2933MHz DDR4 DIMMs, increasing server performance by 50%. With GPU acceleration and NVMe SSD, the H3C rack server R4700 G3 provides excellent computing performance and I/O acceleration. Its support of power supplies with 96% efficiency and an operating temperature as high as 45°C (113°F) greatly improves data center efficiency and brings high return on investment.

The H3C Rack Server R4700 G3 Is Ideal For High-density Scenarios

- High-density data centers – For example, data centers of medium- to large-sized enterprises and service providers.
- Dynamic load balancing – For example, database, virtualization, private cloud, and public cloud.
- Compute-intensive applications – For example, Big Data, smart commerce, and geological prospecting and analysis.
- Low-latency and online trading applications – For example, querying and trading systems of the financial industry.

Specification

Computing	2 ×2nd Generation Intel Xeon Scalable Processors (CLX&CLX-R) (Up to 28 cores and maximum 205 W power consumption)
Memory	24 × DDR4 DIMMs with maximum 3.0 TB Capacity (Up to 2933 MT/s data transfer rate and support of both RDIMM and LRDIMM) (Up to 12 Intel ® Optane™ DC Persistent Memory Module.(DCPMM)
Storage controller	Embedded RAID controller (SATA RAID 0, 1, 5, and 10) Standard PCIe HBA cards and storage controllers (Optional)
FBWC	8 GB DDR4-2133MHz
Storage	Front 12LFF + rear 4LFF and 4SFF or front 25SFF + rear 2LFF and 4SFF(supports SAS/SATA HDD/SSD, front and inside NVMe drives, and up to 24 front NVMe drives) 480 GB SATA M.2 SSDs (Optional) SD cards
Network	1 × onboard 1 Gbps management network port 1 × mLOM Ethernet adapter that provides 4 × 1GE copper ports or 2 × 10GE copper/fiber ports 1 × PCIe Ethernet adapters (Optional)
PCIe slots	10 × PCIe 3.0 slots (eight standard slots, one for Mezzanine storage controller, and one for Ethernet adapter)
Ports	Rear 1 x VGA connector and 1 x serial port 5 × USB 3.0 connectors (one at the front, two at the rear, and two in the server) Front 1 x VGA connector 1 × USB 2.0 connector (Optional) 2 × MicroSD slots (Optional)
GPU	3 × dual-slot wide GPU modules or 8 × single-slot wide GPU modules
Optical drive	External optical drive Only the 8SFF drive models support built-in optical drives
Management	HDM (with dedicated management port) and H3C FIST
Security	Support Chassis Intrusion Detection,TCM1.0/TPM2.0 Optional PCIe Protection module,Provide Firewall,IPS,Ant-virus and QoS features
Power supply and ventilation	Platinum 550W/800W/850W/1300W/1600W, Titanium, or 800W –48V/336V DC power supplies (1+1 redundancy) Hot swappable fans (supports redundancy)
Standards	CCC, CECP, SEPA,CE,EAC, etc.
Operating temperature	5°C to 50°C (41°F to 122°F) The maximum operating temperature varies by server configuration.
Dimensions (H × W × D)	Without a security bezel: 87.5 × 445.4 × 748 mm (3.44 × 17.54 × 29.45 in) With a security bezel: 87.5 × 445.4 × 769 mm (3.44 × 17.54 × 30.28 in)
Warranty	Three years Next-business-day Onsite Support, 5×9

Certificate

He7f13a1146a1418f9e9c7215172d0485501

Warehouse

H0b2da126438747d48c31a6e7d20580310png720x720q50

FAQ

Q1: Are you a factory or a trading company?

A: We are a distributor and trading company.

Q2: What are the guarantees for product quality?

A: We have professional engineers to test each device before shipment. All servers use dust-free IDC room, 100% new appearance and same interior.

Q3: When I receive defective products, how do you solve it?

A: We have professional engineers to help you solve the problem. If the product is defective, we usually return or replace them in the next order.

Q4: How to order in bulk?

A: You can contact our customer service, they will provide you with the best solution and service.

Q5: What are your payment terms?

A: We accept TT. But we provide 30-90 days credit business for quality customers when necessary.

Q6: How long is the warranty? When will the package be sent out after payment?

A: The shelf life of the product is 1 year. For more information, please contact our customer service. After the contract is signed, if there is stock, we will arrange express delivery for you immediately or within 5 days.
