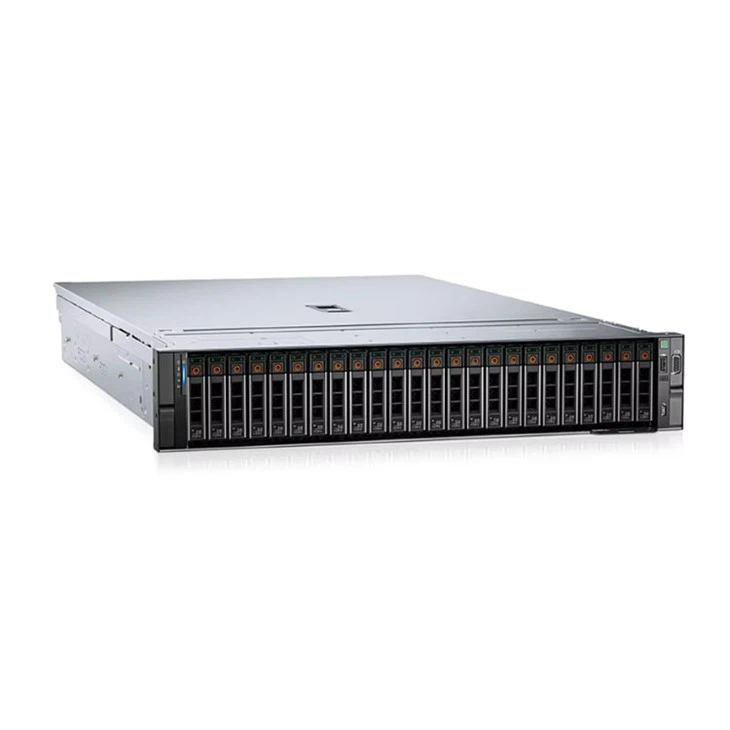

Dell Poweredge R760 Rack Server

Compute Performance

Category

Specification

Processors

Up to two 4th Gen Intel Xeon Scalable (56 cores) or 5th Gen (64 cores)

Memory

32 DDR5 DIMM slots (8TB max) @ 4800-5600 MT/s

GPU Support

2× double-wide (350W) or 6× single-wide (75W) GPUs

Storage Configuration

Controllers

PERC H965i, H755, H755N, H355

HBA355i/e

BOSS-N1 (2×M.2 NVMe or USB)

Software RAID S160

Power & Cooling

Power Supplies (all hot-swap redundant)

800W Platinum to 2800W Titanium options

100-240VAC/240HVDC or LVDC (-48 to -60VDC) variants

Cooling

Standard air cooling

Optional Direct Liquid Cooling (rack solution required)

Location

Configuration

Max Capacity

Front

12×3.5" SAS/SATA

240TB

Front

8×2.5" SAS/SATA/NVMe

122.88TB

Front

16×2.5" SAS/SATA/NVMe

245.76TB

Front

24×2.5" SAS/SATA/NVMe

368.64TB

Rear

2×2.5" SAS/SATA/NVMe

30.72TB

Rear

4×2.5" SAS/SATA/NVMe

61.44TB

Processor

Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel® QuickAssist Technology

Memory

32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s

• Supports registered ECC DDR5 DIMMs only

Storage controllers

• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i

• Internal Boot: Boot Optimized Storage Subsystem(BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB

• External HBA (non-RAID): HBA355e

• Software RAID: S160

Drive Bays

Front bays:

• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB

• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB

• Up to16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB

• Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB Rear bays:

• Up to2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB

• Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

Power Supplies

• 2800 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant

• 2400 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant

• 1800W Titanium 200-240 VAC or 240 HVDC, hot swap redundant

• 1400 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant

• 1100 WTitanium 100-240 VAC or 240 HVDC, hot swap redundant

• 1100 W LVDC -48 - -60 VDC, hot swap redundant

• 800 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant

• 700 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant

Cooling Options

Air cooling

• Optional Direct Liquid Cooling (DLC)

Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate

Fans

• Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans

• Up to 6 hot plug fans

Dimensions

• Height – 86.8 mm (3.41 inches)

• Width – 482 mm (18.97 inches)

• Depth – 772.13 mm (30.39 inches) with bezel 758.29 mm (29.85 inches) without bezel

Form Factor

2U rack server

Embedded Management

• iDRAC9

• iDRAC Direct

• iDRAC RESTful API with Redfish

• iDRAC Service Module

• Quick Sync 2 wireless module

Bezel

Optional LCD bezel or security bezel

Optional LCD bezel or security bezel

CloudIQ for PowerEdge plug in

• OpenManage Enterprise

• OpenManage Enterprise Integration for VMware vCenter

• OpenManage Integration for Microsoft System Center

• OpenManage Integration with Windows Admin Center

• OpenManage Power Manager plugin

• OpenManage Service plugin • OpenManage Update Manager plugin

Mobility

OpenManage Mobile

OpenManage Integrations

• BMC Truesight

• Microsoft System Center

• OpenManage Integration with ServiceNow

• Red Hat Ansible Modules

• Terraform Providers
• VMware vCenter and vRealize Operations Manager

Security

• Cryptographically signed firmware

• Data at Rest Encryption (SEDs with local or external key mgmt)

• Secure Boot

• Secure Erase
• Secured Component Verification (Hardware integrity check)

• Silicon Root of Trust

• System Lockdown (requires iDRAC9 Enterprise or Datacenter)

• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Embedded NIC

2 x 1 GbE LOM card (optional)

Network options

1 x OCP card 3.0 (optional)

Note: The system allows either LOM card or an OCP card or both to be installed in the system.

GPU Options

Up to 2 x 350 W DW and 6 x 75 W SW
