Future defined data center
Lenovo delivers engineered, tested and certified IT solutions that are high performance, scalable and cost-effective. By combining industry-leading x86 server technology and reliability, partnering to deliver best-in class co-innovation and providing end-to-end peace of mind with Lenovo ThinkShield, XClarity, and Services, Lenovo solutions enable customers to use real-time data to drive actionable insights. As the compute for these solutions, Lenovo SR630 V2 makes businesses smarter by providing support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more.
Workload-optimized support
Lenovo SR630 V2 is tuned for Intel® Optane™ Persistent Memory 200 series. With this second generation of high performing persistent memory tier optimized for 3rd generation Intel® Xeon® Scalable processors, it offers significantly lower data latency, higher capacities and greater value. With data stored closer to the processor, applications can access data faster driving swifter response times for real-time analytics, financial transactions, electronic medical records, fraud detection, and much more.
Flexible storage
Industry leading backplane design for Lenovo AnyBay™ features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, U.2 & U.3 NVMe PCIe drives, or EDSFF-based SSDs. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
|
Model |

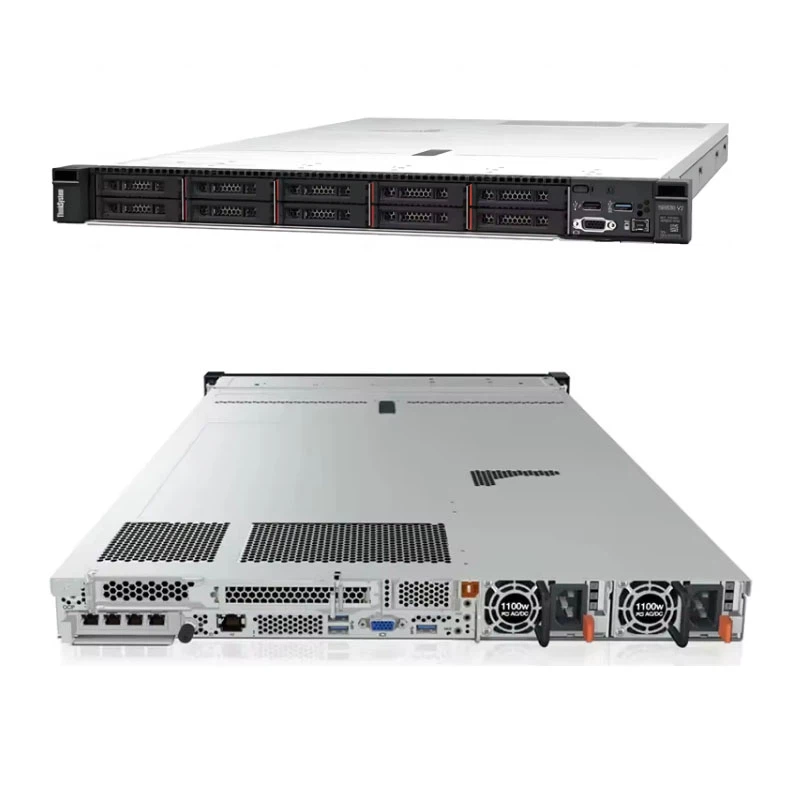

Lenovo SR630 V2 Server |
|
Form Factor/Height |
1U rack server |
|
Processor |
Up to 2x 3rd generation Xeon® Scalable processors, up to 40 cores, up to 270W TDP |
|
Drive Bays |
Front and rear drive bays of up to 4x 3.5-inch + 2x 2.5-inch drives, or 12x 2.5-inch drives, or 16x EDSFF drives; Up to 12x NVMe drives supported; 2x M.2 boot drives (RAID 1); 2x 7mm boot drives in rear (RAID 1) |
|
Memory |
32x DDR4 memory slots; Maximum 8TB using 32x 256GB 3DS RDIMMs; Supports up to 16x Optane™ DC persistent memory 200 Series modules(PMem) |
|
Expansion Slots |
Up to 3x PCIe 4.0 slots, 1x OCP 3.0 slot, 1x cabled HBA/RAID adapter that doesn't occupy a standard PCIe slot |
|
GPUs |
Up to 3x single-width 75W GPUs |
|
Network Interface |
LOM adapter installed in the OCP 3.0 slot; PCIe adapters |
|
Ports |
Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external diagnostics handset port |
|
HBA/RAID Support |
SW RAID standard; optional HW RAID with/without cache or 8/16-port SAS HBAs |
|
Power |
Dual redundant power supplies (up to 1800W Platinum) |
|
Series |
Description |
|
ThinkSystem SR Series |
High-performance servers designed for data center environments, scalable and efficient. |
|
ThinkSystem ST Series |
Tower servers suitable for small to medium-sized businesses, reliable and versatile. |
|
ThinkSystem SE Series |
Entry-level servers offering essential features for small business applications. |
|
ThinkSystem SN Series |
Optimized for storage and networking applications, providing high throughput. |
|
ThinkSystem SD Series |
Software-defined infrastructure servers, designed for flexibility and scalability. |
|
ThinkSystem SR Series |
Rack servers ideal for enterprise applications, offering robust performance. |
|
ThinkSystem HX Series |
Hyperconverged infrastructure platforms combining compute, storage, and virtualization. |
|
ThinkAgile VX Series |
Pre-integrated hyperconverged systems for simplified deployment and management. |
|
ThinkAgile SX Series |
Converged infrastructure platforms for data center workloads, scalable and agile. |
|
ThinkAgile MX Series |
Modular infrastructure systems offering flexibility and customization options. |
