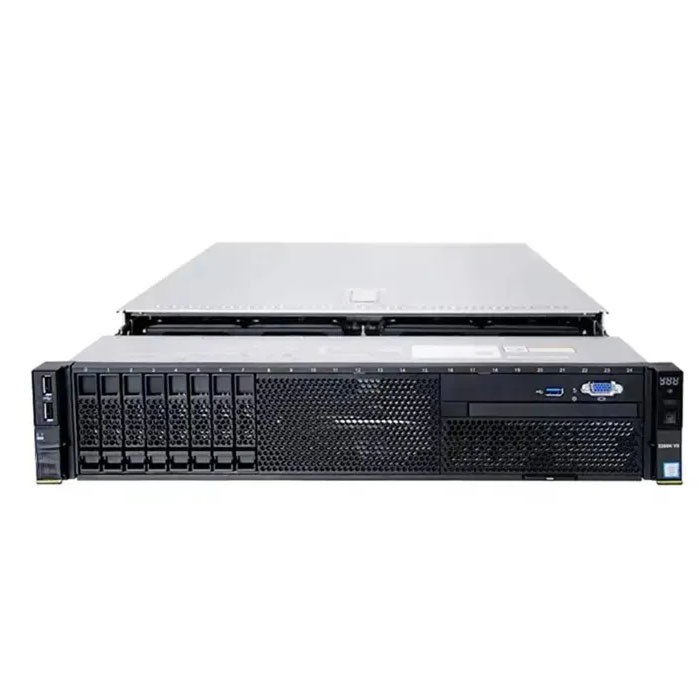

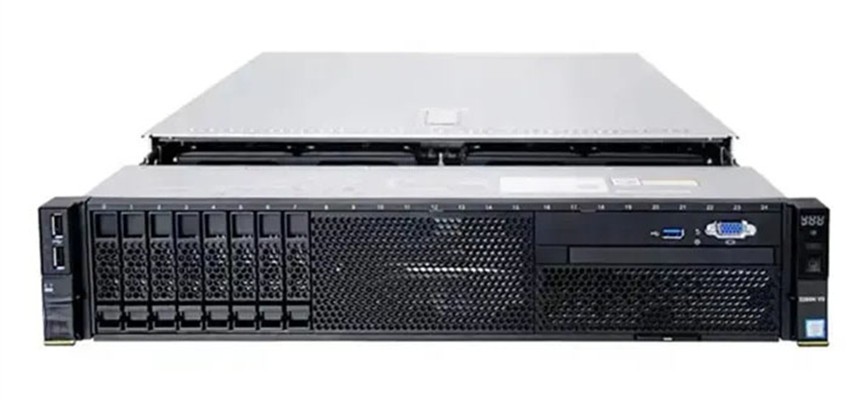

The 2288H V5/V6/V7 Rack Server is a high-performance, versatile server designed to meet the demanding needs of modern data centers and enterprise environments. This rack-mounted server offers exceptional scalability, reliability, and efficiency. With support for the latest processors, ample memory capacity, and advanced storage options, it delivers robust performance for a wide range of applications. Its flexible design and efficient cooling solutions make it ideal for various workloads, ensuring optimal performance and energy efficiency in a compact rack form factor.

Product Features

● High Performance: Supports the latest Intel Xeon processors for superior computing power.

● Scalability: Offers flexible expansion options with multiple memory and storage configurations.

● High Capacity Memory: Supports large memory capacities to handle memory-intensive applications.

● Advanced Storage Options: Provides various storage configurations, including high-speed SSDs and large-capacity HDDs.

● Efficient Cooling: Features advanced cooling solutions to maintain optimal operating temperatures.

● Flexible Configuration: Allows customization of CPU, memory, and storage to meet specific requirements.

● High Reliability: Designed for reliability with redundant components and fault-tolerant features.

● Energy Efficiency: Implements energy-saving technologies to reduce power consumption and operational costs.

● Management Tools: Includes comprehensive management tools for easy monitoring and administration.

● Compact Design: Rack-mounted design optimizes space utilization in data centers and server rooms.

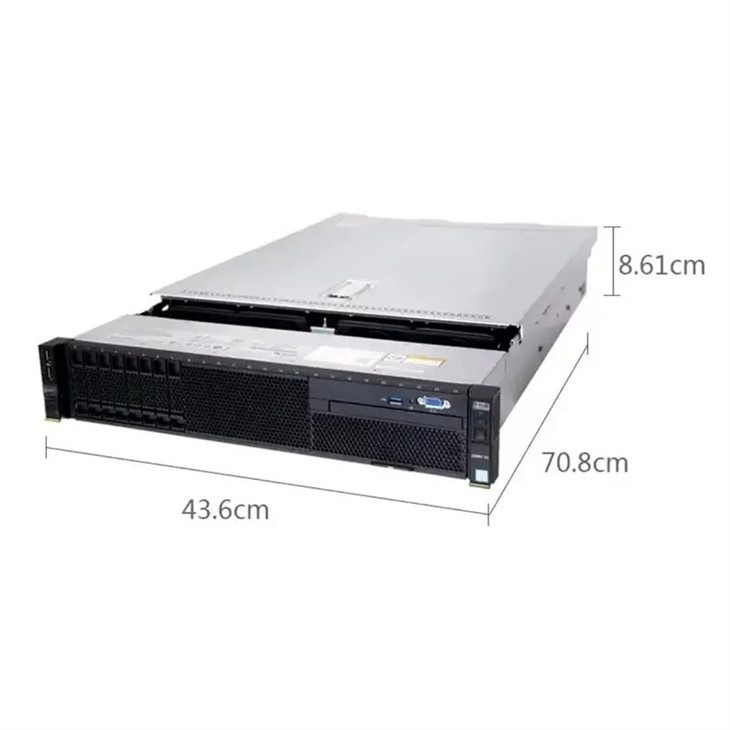

Form Factor	2U rack server
Processor	1 or 2 x 4th Gen Intel Xeon Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor
Chipset	Emmitsburg PCH
Memory	32 x DDR5 DIMMs, with up to 4800 MT/s speed. Supports memory expansion via CXL with up to 16 x DDR5 or DDR4 DIMM slots; up to 48 x DIMM slots*
Local Storage	Hot-swappable drives with the following configuration options are supported: • 8 to 35 x 2.5ʺ SAS/SATA/SSD drives • 12 to 20 x 3.5ʺ SAS/SATA drives • 4/8/16/24 x NVMe SSDs • 36 x E1.S SSDs • 48 x E3.S SSDs* • Up to 45 x 2.5ʺ drives, or 34 x full NVMe SSDs • 2 x M.2 SSDs
RAID	RAID 0, 1, 10, 1E, 5, 50, 6, or 60
Network	Expansion capability of multiple types of networks OCP 3.0 NICs are supported. Both two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap is supported
PCIe Expansion	Up to 19 x PCIe slots: 2 x FlexIO slots dedicated for OCP 3.0 NICs and 17 x standard PCIe expansion slots, 14 slots of which support PCIe 5.0
GPU Card	4 x dual-width or 14 x single-width GPU cards
Fan Module	4 x hot-swappable counter-rotating fans in N+1 redundancy
Power Supply	2 x hot-swappable PSUs in 1+1 redundancy mode. Supported options include: • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs 1000 W (input: 100 V to 127 V AC) 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC) • 3000 W AC Titanium PSUs 2500 W (input: 200 V to 220 V AC) 2900 W (input: 220 V to 230 V AC) 3000 W (input: 230 to 240 V AC) • 2000 W AC Platinum PSU 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)

Certificate

He7f13a1146a1418f9e9c7215172d0485501

Warehouse

H0f8d372bb03c453dbe2c7257da58864aG

FAQ

Q1: Are you a factory or a trading company?

A: We are a distributor and trading company.

Q2: What are the guarantees for product quality?

A: We have professional engineers to test each device before shipment. All servers use dust-free IDC room, 100% new appearance and same interior.

Q3: When I receive defective products, how do you solve it?

A: We have professional engineers to help you solve the problem. If the product is defective, we usually return or replace them in the next order.

Q4: How to order in bulk?

A: You can contact our customer service, they will provide you with the best solution and service.

Q5: What are your payment terms?

A: We accept TT. But we provide 30-90 days credit business for quality customers when necessary.

Q6: How long is the warranty? When will the package be sent out after payment?

A: The shelf life of the product is 1 year. For more information, please contact our customer service. After the contract is signed, if there is stock, we will arrange express delivery for you immediately or within 5 days.
