Huawei Server 2288H V5 is a 2U 2-way rack server with flexible configuration and can be widely used in cloud computing virtualization, database, big data and other loads. 2288H V5 can be configured with 2 processors, 24 DDR4 memory expansion slots, 10 PCIe expansion slots and up to 20*3.5" or 31*2.5" local storage resources (4/8/12/24/28 can be configured NVMe SSD hard drive). Integrated DEMT intelligent power management, FDM intelligent fault management and other patented technologies, and optional Huawei FusionDirector full life cycle management software, can effectively reduce operating costs and improve return on investment.
|
Product Name |
Huawei Server |
|
Model |
RH2288HV5 |
|
Processor Frequency |
2.3GHZ |
|
Quality |
High Level |
|
Form Factor |
2U Rack Server |
|
Maxim Processor |
1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205 W |
|
RAM |
24 DDR4 DIMM slots, 2933 MT/s; up to 12 DCPMMs, 2666 MT/s |
|
Drive |
• 8 x 2.5-inch SAS/SATA hard drives • 12/16/20 x 3.5-inch SAS/SATA hard drives • 4, 8, 12, 24, or 28 NVMe SSDs • 31 x 2.5-inch SAS/SATA hard drives Flash storage: • 2 M.2 SSDs |
|
Storage controllers |
SR130 or SR430 RAID 0, 1, 10, 1E, 5, 50, 6, or 60 |
|
I/O & Ports |
LOM: 2 x 10GE + 2 x GE ports |
|
Power supplies |
460W/750W/1200W |
|
Height X Width X Depth |
86.1 mm x 447 mm x 748 mm |
|
Rail |
Optional rail |
|
Slots |
Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC. |
|
Weight |
Weight |

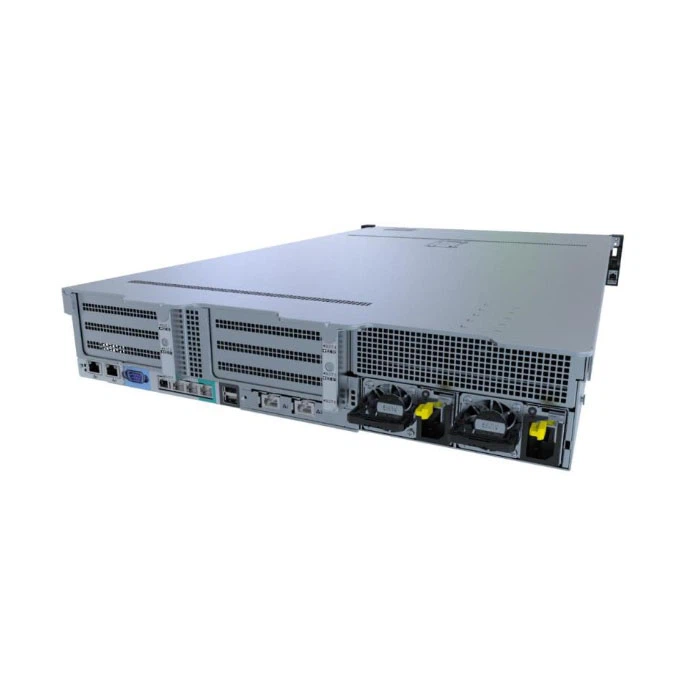

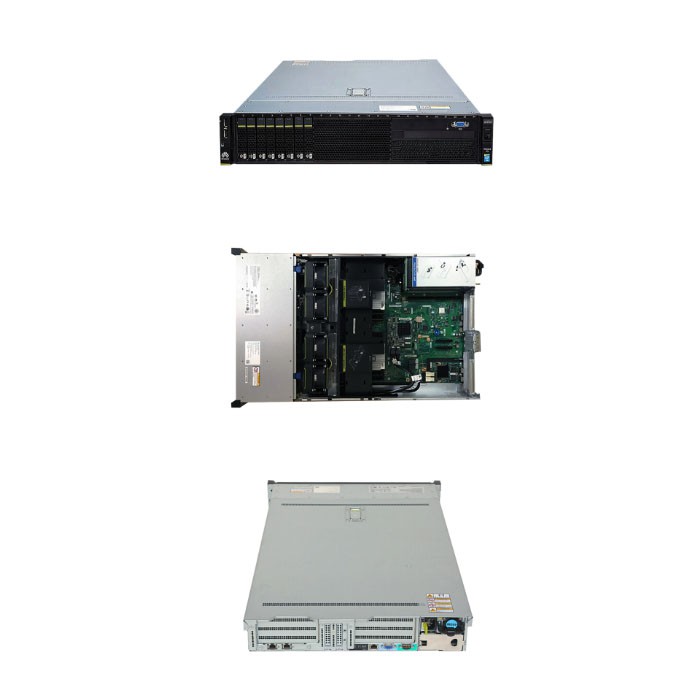

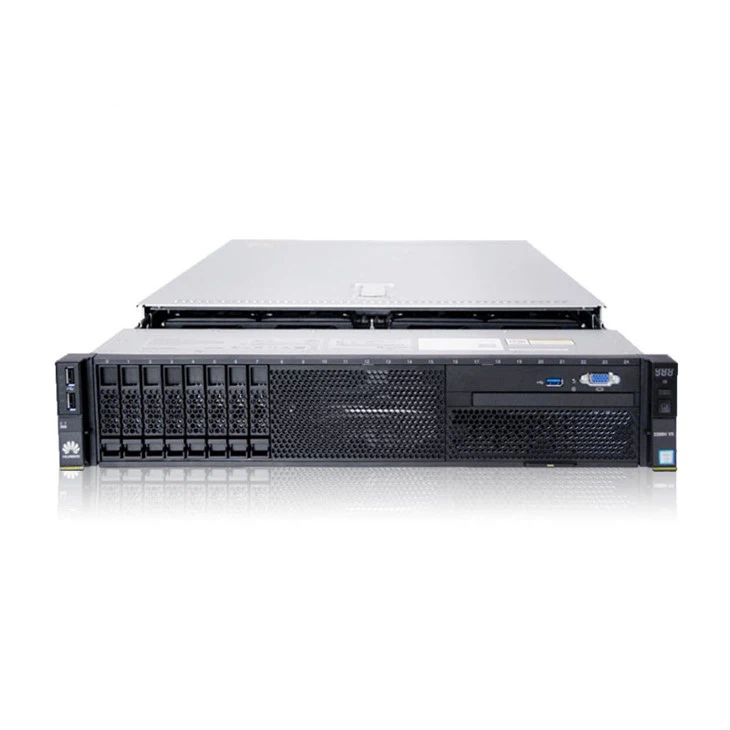

Huawei Server 2288H V5
The Huawei Server 2288H V5 is an a 2U, 2-socket rack server. Huawei server 2288H V5 has been verified by Intel as an Intel® Select Solution for NFVI and it supports the configuration of over 100 types of resources with just one model, flexibly meeting the hardware resource requirements of diverse workloads. It is an ideal choice for diverse applications, such as cloud computing, virtualization, databases, HPC, and big data processing.
Smart Power Savings and Better Energy Efficiency Leverages patented DEMT for smart power management, slashes power consumption by up to 15% without affecting performance, and uses 80 Plus® Titanium PSUs for better energy utilization.
Unmatched Intelligent Manageability and Openne Supports smart O&M across the entire lifecycle and FDM for diagnosis with accuracy of up to 93%.
Provides standardized and open interfaces, facilitating integration with third-party management software.
