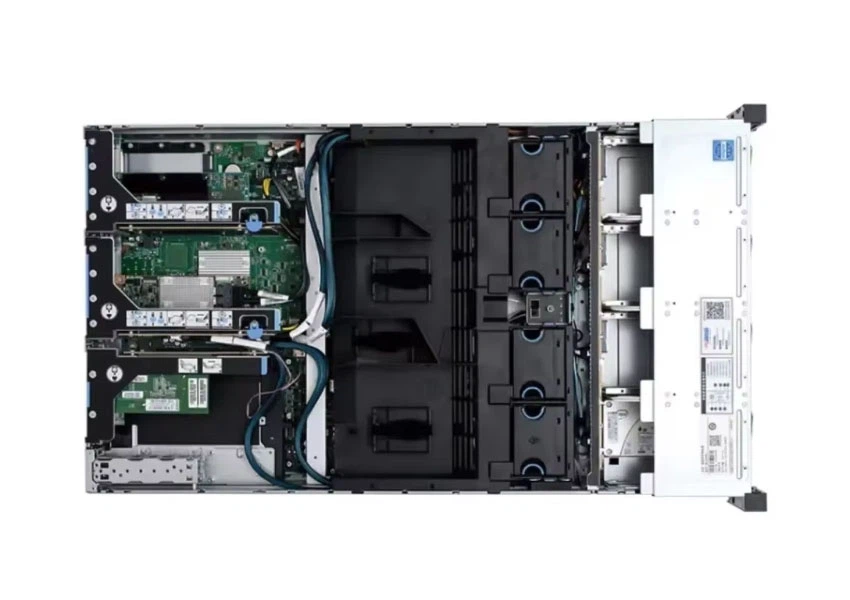

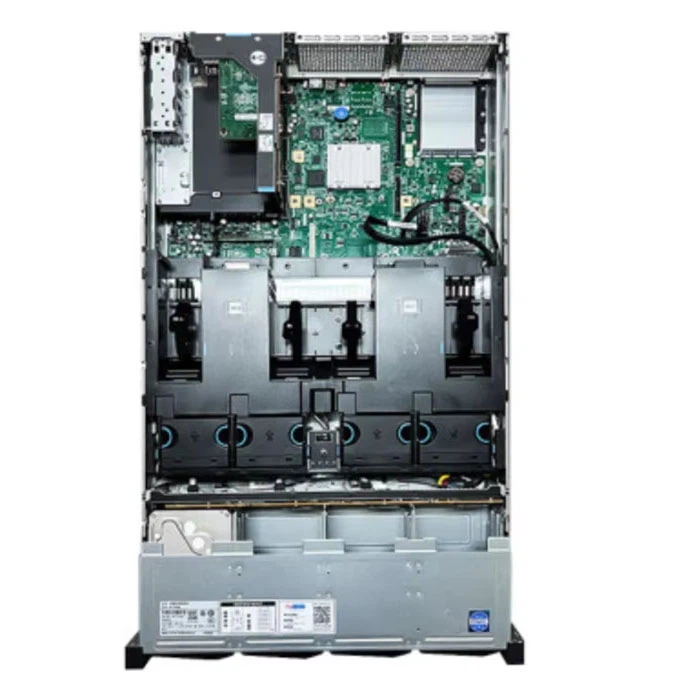

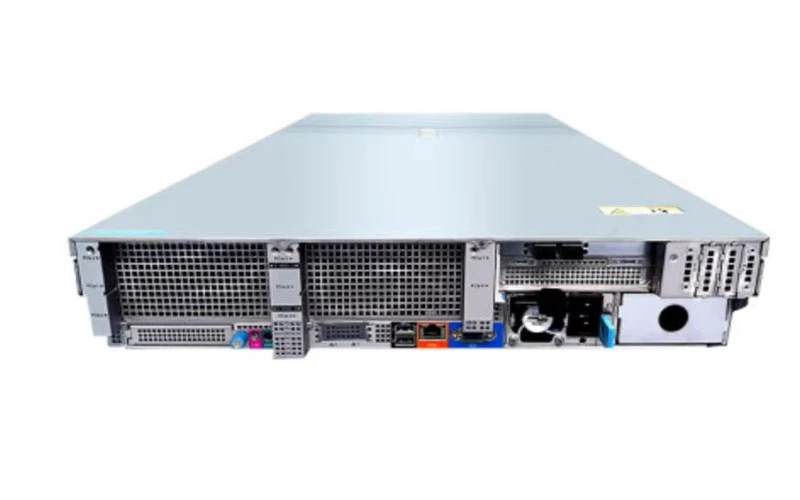

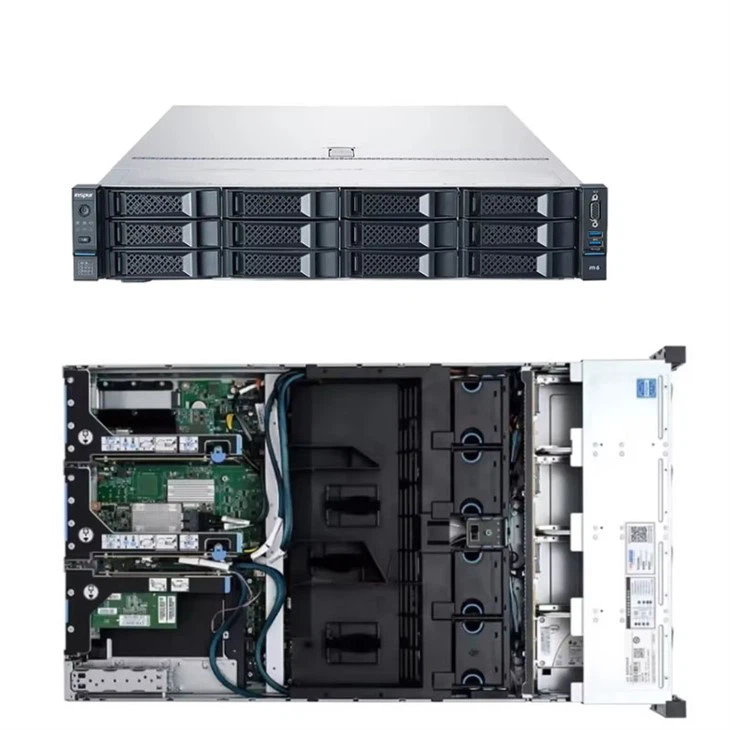

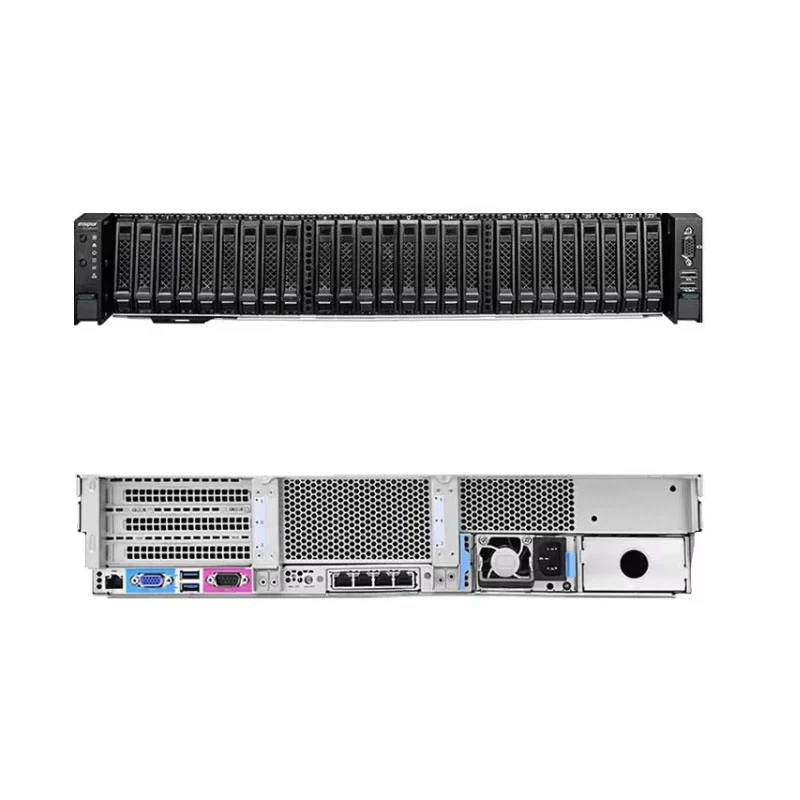

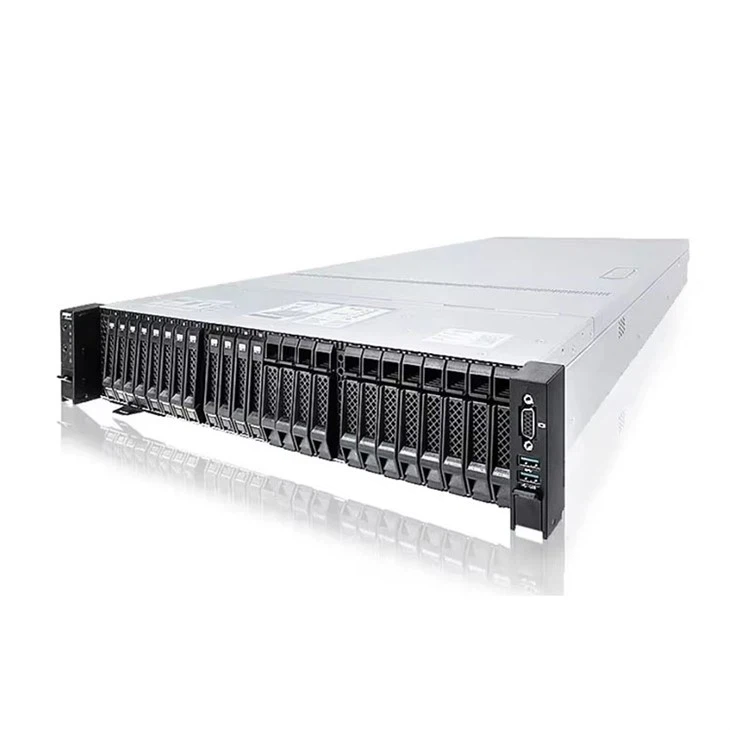

NF5280M6 is a 2U 2-socket rack server engineered for Internet, Internet Data Center (IDC), cloud computing, enterprise markets and telecommunications applications. It delivers superior performance, reliability, scalability, and manageability and is applicable to various business scenarios with complex workloads. It meets customer requirements for high network bandwidth, high computing performance, and large memory capacity and is also a perfect solution for customers with density and storage demands.

Features

High Performance

NF5280M6 configured with 2 latest 3rd generation Intel® Xeon® scalable processors, each CPU has up to 40 cores and 80 threads. The maximum TDP 270W, maximum base frequency 3.6GHz, 1.5MB L3 cache per core and 3 UPIs up to 11.2GT/s.
NF5280M6 provides extraordinary speed, high availability and a maximum of 6T memory capacity with up to 32 * DDR4-3200MT/s ECC RDIMMs or LRDIMMs.
NF5280M6 protects data integrity during power failure without degrading memory capacity and bandwidth by support Intel® Optane™ Persistent Memory, It up to 512G capacity and 3200MHz bandwidth.

Flexible Expansion

Support up to 20 * 3.5-inch or 39 * 2.5-inch drives.
Support OCP 3.0 (optional) and 10/25/40/100/200G network interface.
Support up to 11 * PCIe slots for further I/O performance upgrade.
Support rear 2 * SATA M.2/E1.S (optional) to meet a variety of storage needs.

Intelligent Management

NF5280M6 adopts easy maintenance design and the entire system supports tool-less maintenance. By optimizing some structural components, it allows convenient assembly and reduces the maintenance time.

With Inspur's unique intelligent temperature control technology and advanced air-cooling system to keep the server working in the best environment, to ensure the stable operation of the system.
Relying on the latest BMC technology, technicians can perform monitoring and troubleshooting via the web-based GUI and LEDs (for fault diagnosis and prognosis). The front-panel UID indicator indicates the failure components and identifies the faulty or abnormal components in a timely manner, thus, simplify the maintenance workflow, speed up troubleshooting, and improve system availability.
BMC supports to monitor system parameters and triggers alarm notification for potential failures, thus, allow technician to be prepared in case of failure, secure stable machine operation, and reduce the risk of system shutdown.

1733906531801

Form Factor	2U rack server
Processor	1 to 2 Intel® Xeon® Scalable processors: • Up to 40 cores • Max. speed of 3.6GHz • 3 UPI links and up to 11.2GT/s per link • TDP up to 270W
Chipset	Intel C621A
Memory	• Up to 32 DIMMs • 16 memory channels per processor, and up to 2 memory slots per channel • Up to 3200MT/s • RDIMMs, LRDIMMs and BPS supported • ECC, memory mirroring and memory rank sparing
Storage	• Front Panel 24 × 2.5'' hot-swap SATA/SAS/NVMe drives 25 × 2.5'' hot-swap SATA/SAS drives 12 × 2.5'' hot-swap SATA/SAS drives 12× 3.5''/2.5'' hot-swap SATA/SAS/NVMe drives • Rear Panel 4 × 2.5'' hot-swap SATA/SAS/NVMe SSDs 4 × 3.5'' hot-swap SATA/SAS/NVMe SSDs 10 × 2.5'' hot-swap SATA/SAS SSDs • Rear Storage 2 optional SATA M.2 SSDs or 2 optional E1.S modules • Built-in Storage Up to2 TF cards for BIOS and BMC respectively Up to 4x3.5" SATA/SAS
Storage Controller	• RAID card controller • SAS card controller • Onboard PCH supports 14×SATA connectors (2 × SATA 7-pin + 3 × Mini SAS HD) • Intel onboard NVMe controller and optional Intel VROC Key • Intel VROC Key: RAID 0/1/10_Black and RAID 0/1/5/10_Red
Network	• 1 optional OCP NIC 3.0 module (1Gb/s, 10Gb/s, 25Gb/s, 40Gb/s, 100Gb/s and 200Gb/s) • Dual 10G onboard network interfaces with the speed of 10Gb/s • Standard PCIe form factor: 1Gb/10Gb/25Gb/40Gb/100Gb NIC
I/O Expansion Slots	• Up to 11 PCIe slots (10 x8 and 1 x16)
Ports	• 2 rear USB 3.0 ports + 1 front USB 3.0 port + 1 front USB 2.0 port • 1 front VGA port • 1 rear VGA port
Fans	4 hot-swap 8056 fans of N+1 redundancy 8038 fans (N+1 redundancy is not supported)
Power Supply	550W/800W/1300W/1600W/2000W CRPS power supply of 1+1 redundancy • 110 VAC - 230 VAC: 90V - 264V • 240 VDC: 180V - 320V • 336 VDC:260V - 400V • -48 VDC: -40V to -72V
System Management	Integrated with 1 independent 1000Mbps network port, dedicated for IPMI remote management
Operating System	See Table 7-15 for detailed OS supported
Dimension	• With lugs: 478.8mm (W) × 87mm (H) × 811.7mm (D) • Without lugs: 435mm (W) × 87mm (H) × 780mm (D)
Weight	• 12 × 3.5'' configuration (Rear 2.5-inch drives included) Net weight: 28Kg Gross weight: 37.5Kg (Chassis + Packaging Box + Rails+Accessory Box) • 25 × 2.5'' configuration (Rear 2.5-inch drives included) Net weight: 25.5Kg Gross weight: 35Kg (Chassis +Packaging Box + Rails + Accessory Box)
Operating Temperature	• Operating: 5°C - 45°C (35°C - 45°C for some models) • Storage (packed): -40°C to +70°C; • Storage (unpacked): -40°C to +55°C
