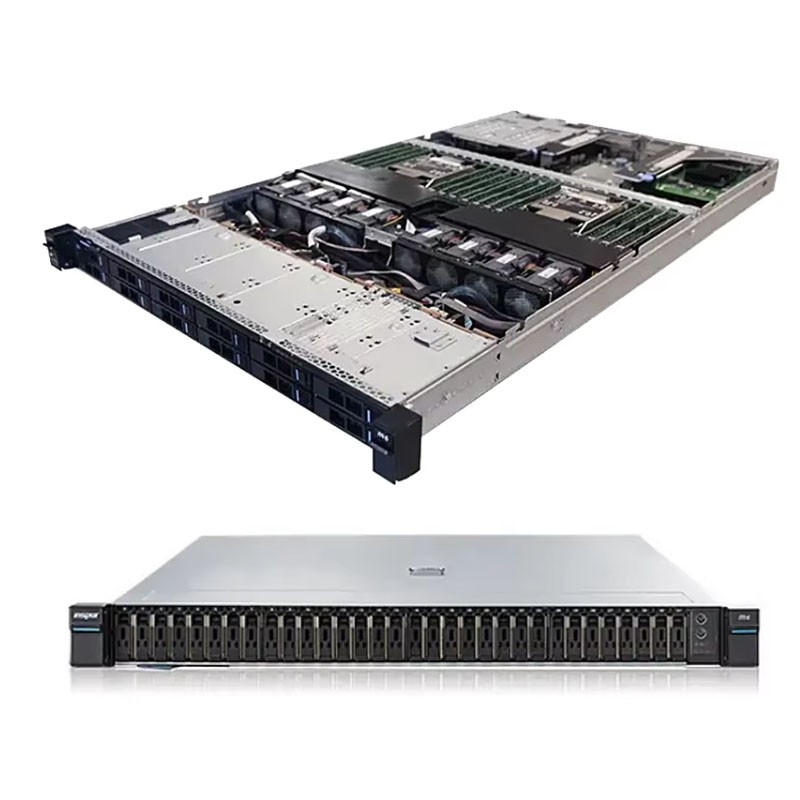

Excellent performance, powerful and efficient
Inspur NF5180M6 based on a new generation of Intel® Xeon® third-generation scalable processors, a single CPU has up to 40 cores and 80 threads, and supports a maximum TDP 270W CPU. The highest turbo frequency is 3.6 GHz, and 3 sets of 11.2 GT/s UPI interconnect chain road Support 32 3200 MT/s DDR4 ECC memory, the memory supports RDIMM type, up to 12T memory capacity.
Inspur NF5180 M6 support 16 BPS type memory, the maximum capacity of a single memory is 512G, and the bandwidth is 3200MHz Supports up to 12 hot-pluggable NVMe SSD all-flash configurations, providing ten times the IOPs of high-end enterprise-class SATA SSDs Supports a maximum of 32 hot-pluggable E1.S SSD all-flash configurations, E1.S SSD has the advantages of high IOPs of traditional NVME SSD, and at the same time has a smaller size.
Rich configuration, easy to expand

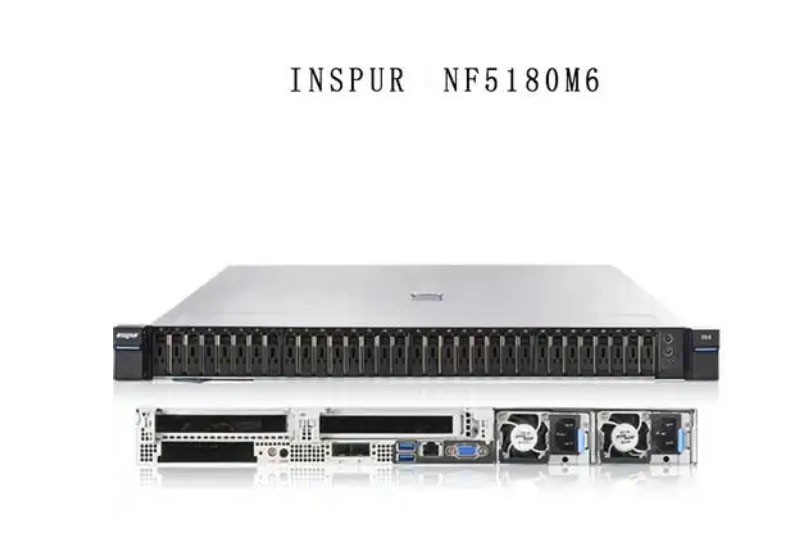

Inspur NF5180 M6 supports up to 12 front 2.5" SAS/SATA/NVMe hard drives + 2 rear 2.5" SAS/SATA or supports 32 E1.S SSDs.
Inspur NF5180M6 support optional OCP3.0 module, provide 1G, 10G, 25G, 40G, 100G, 200G multiple network interface options.
Inspur NF5180M6 supports up to 3 PCIe 4.0 expansions (3*PCIe x16), which can be used to further improve I/O performance.
Inspur NF5180M6 support optional front M.2/E1.S SSD module to meet diverse storage needs.
Safe and reliable, easy to use
In terms of hardware design, the main board and backplane are designed with overcurrent and overvoltage protection functions; on-board connectors and cables are all designed to prevent circuit safety risks.
In terms of structural safety, the chassis panel and the upper cover of the chassis are designed with locks, which can prohibit unsafe illegal operations.
In terms of hardware interfaces, all physical IO interfaces are clearly defined, and no unclear interfaces are reserved; the interfaces used for maintenance have an access control mechanism to prevent malicious operations by illegal personnel.
In terms of firmware security, the image files are signed with a secure encryption algorithm before the release, and the signature needs to be verified when the firmware is updated, thus ensuring the integrity and legality of the firmware.
The ISBMC4 intelligent management system has security features such as identity identification and authentication, authorization and access control, web security configuration, log auditing, and high security reinforcement capabilities.
Optionally configure the TPM2.0 encryption module to protect data security and realize the secure startup of the server.
Product Description
|
Component |
Describe |
|
Specifications |
1U rack type |
|
Processor |
Supports 1 to 2 Intel Xeon Series 3rd generation expandable processors: Supports up to 40 cores (2.3GHz) Maximum frequency 3.6GHz(4 cores) Three UPI interconnect links, single link high rate 11.2GT/s Maximum thermal design power 270W |
|
Chip set |
Intel C621A |
|
Memory |
Supports a maximum of 32 memory modules. Each processor supports eight memory channels and each channel supports a maximum of two memory slots. The maximum memory speed is 3200MT/s. RDIMM and BPS are supported. Memory protection supports ECC, memory mirroring, and memory level protection |
|
Storage |
Pre - 24 x 2.5" SATA, SAS, and NVME support hot swap 25 x 2.5" SATA/SAS hot-swappable 12 x 2.5" /3.5" SATA, SAS, and NVMe support hot swap The rear 4 x 2.5" SATA/SAS/NVMe SSDS are hot-swappable 4 x 3.5" SATA/SAS SSDS support hot swap 10 x 2.5" SATA/SAS hot-swappable Two SATA M.2 or two E1.s are optional built-in 4 x 3.5" SATA or SAS are not hot-swappable Supports a maximum of two TF cards, one BIOS/ one BMC |
|
Storage controller |
RAID card controller and SAS card controller The onboard PCH supports an Intel onboard NVME controller with 14*SATA ports and an Intel NVME Raid Key is optional |
|
Network interface |
1 optional OCP3.0 module 10Gb/s,25Gb/s,40Gb/s, 100Gb/s, 200Gb/s One group of dual 10-gigabit on-board network ports 10Gb/s |
|
I/O expansion slot |
Supports a maximum of 11 PCIe slots Supports four dual-width Gpus or eight single-width Gpus/graphics cards. Supports one OCP3.0x16 network adapter Supports one RAID Mezz card |
|
Interface |
2 rear USB3.0+1 front USB3.0+1 front USB 2.0 1 front VGA 1 rear VGA |
|
Fan |
Four hot-swappable N+1 redundant fans |
|
Power supply |
Support 1 + 1 redundancy power 550 w / 800 w / 1300 w / 1600 w / 2000 w CRPS standard power supply |
|
System Management |
An independent 1000Mbps network interface is integrated for remote management of IPMI. Carbon inbound management: configure 1Gb independent remote management control port; It can realize the complete remote control of the server independent of the operating system, including remote startup, shutdown, restart, Firmware update, virtual CD-ROM drive, virtual folder and other operations, provide the server health diary, server console screen recording/playback functions, can provide power monitoring, can support dynamic power capping. Supports Chinese BIOS interface Settings |
|
Operating system |
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS |
|
Size |
Including hanging ear: W(width) 482mm; H (H) 43.05mm; D (D) 811.8 mm 32E1.S W (W) 482mm; H (H) 43.05mm; D (depth) 871.8 mm Without hanging ear: W(width) 438mm; H(H) 43.05mm; D(depth) 780 mm 32E1.S W (W) 438mm; H (H) 43.05mm; D (depth) 840 mm |
|
Weight |
Full match＜ 31kg |
|
Operating temperature |
5℃-45°℃ |
