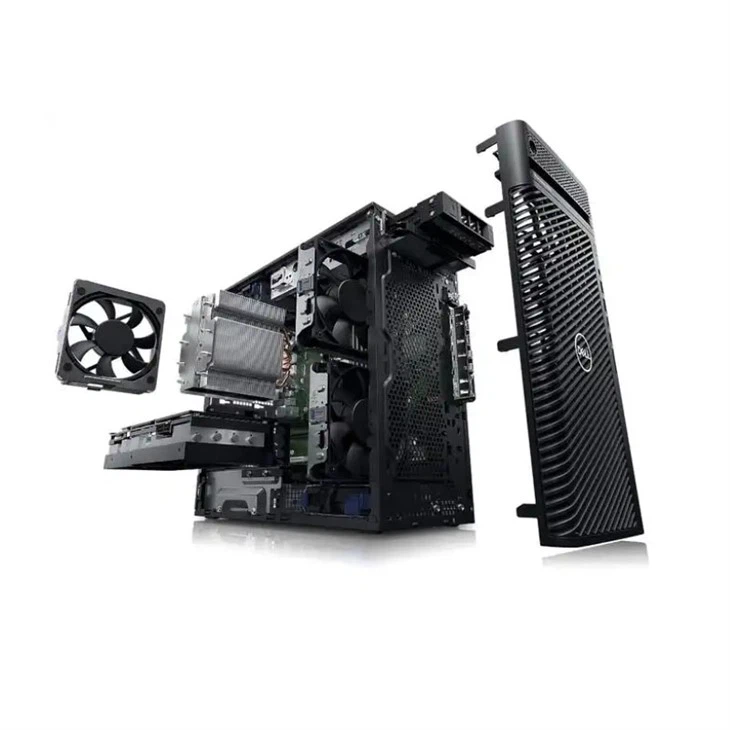

Highly Scalable Mini-tower Design

cooling improvements

Improve cooling with advanced air cooling and high-end liquid cooling.

Lockable, removable front storage

Secure and accessible data storage.

quick access

Easy access to ports (up to 20 Gbps).

Removable power supply

Easily remove the power supply with the tool-less latch.

Strong Performance

Incredibly simple and powerful

Whether working on website design or CAD, Intel integrated graphics or up to AMD Radeon Pro or NVIDIA Pro graphics (up to 350W) ensure you get a smooth, stunning visual experience every time.

Slow down, no way

125W 12th Generation Intel Core™ processor. Up to 128 GB or up to 4400 MHz DDR5 memory. Up to 28 TB of storage with RAID support.

Convenient connection

Integrated Wi-Fi 6 and vPro-enabled Bluetooth 5.2.

Product Specification

MODEL NUMBER	Precision 3660 Tower
PROCESSOR OPTIONS	12th Generation Core™ i9-12900K, 30MB cache, 16 cores (8P+8E), 3.2GHz to 5.2GHz, 125W 12th Generation Core™ i9-12900, 30MB cache, 16 cores (8P+8E), 2.4GHz to 5.1GHz, 65W 12th Generation Core™ i7-12700K, 25MB cache, 12 cores (8P+4E), 3.6GHz to 5.0GHz, 125W 12th Generation Core™ i7-12700, 25MB cache, 12 cores (8P+4E), 2.1GHz to 4.9GHz, 65W 12th Generation Core™ i5-12600K, 20MB cache, 10 cores (6P+4E), 3.7GHz to 4.9GHz, 125W 12th Generation Core™ i5-12600, 18MB cache, 6 cores (6P+0E), 3.3GHz to 4.8GHz, 65W 12th Generation Core™ i5-12500, 18MB cache, 6 cores (6P+0E), 3.0GHz to 4.6GHz, 65W 12th Generation Core™ i3-12100, 12MB cache, 4 cores (4P+0E), 3.3GHz to 4.3GHz, 60W"27,28 Note: All processors come with Integrated Graphics Processor Cooling options29,30 1. Standard CPU Air Cooler (for up to 65W CPUs) 2. Advanced CPU Air Cooler (for all CPUs) 3. Premium CPU Liquid Cooler (for all CPUs)
MEMORY OPTIONS	4 DIMM Slots: Up to 128GB or up to 4400MHz ECC and Non ECC DDR5 Maximum speed: 4400MHz Maximum capacity: 128GB Maximum memory speed varies by the following configuration on each channel. If the 2 DIMM configuration is not symmetrical, the maximum speed may drop. 4400MHz: 1 DIMM-1R/2R 4000MHz: 2 DIMM-1R 3600MHz: 2 DIMM-2R 8GB, 1 x 8GB, DDR5, 4400MHz, Non-ECC 16GB, 2 x 8GB, DDR5, 4400MHz, Non-ECC, dual-channel 32GB, 2 x 16GB, DDR5, 4400MHz, Non-ECC, dual-channel 64GB, 2 x 32GB, DDR5, 4400MHz, Non-ECC, dual-channel 32GB, 4 x 8GB, DDR5, 4000MHz, Non-ECC, dual-channel 64GB, 4 x 16GB, DDR5, 4000MHz, Non-ECC, dual-channel 128GB, 4 x 32GB, DDR5, 3600MHz, Non-ECC, dual-channel 16GB, 1 x 16GB, DDR5, 4400MHz, ECC 32GB, 2 x 16GB, DDR5, 4400MHz, ECC, dual-channel 64GB, 2 x 32GB, DDR5, 4400MHz, ECC, dual-channel 64GB 4 x 16GB, DDR5, 4000MHz, ECC, dual-channel 128GB 4 x 32GB, DDR5, 3600MHz, ECC, dual-channel31
STORAGE	Support for up to (3) M.2 2280 PCIe NVMe SSD on motherboard and up to (3) 3.5-inch SATA33,34 or (4) 2.5-inch SATA HDDs Front accessible 2.5-inch SATA or 3.5-inch SATA HDD (with lockable door and key) available with specific storage configurations
GRAPHICS	One PCI Express x16 Gen5 slot supporting graphics cards up to 350W (Total power available for Discrete Graphics cards) Some cards are available in Dual configurations UHD Graphics 730 for 12th Generation Core™ i3 processors UHD Graphics 770 for 12th Generation Core™ i5/i7/i9 processors RTX A6000, 48GB, GDDR6 Radeon™ Pro W6800, 32GB, GDDR6 RTX A5000, 24GB, GDDR6 RTX A4000, 16GB, GDDR6 Radeon™ Pro RX6900XT, 16GB, GDDR6 Radeon™ Pro W6600, 8GB, GDDR6 Radeon™ Pro W5700, 8GB, GDDR6 RTX A2000, 6GB, GDDR6 Radeon™ Pro WX3200, 4GB, GDDR5 T1000, 4GB, GDDR6 T600 class, 4GB, GDDR6 T400 class, 2GB, GDDR6
PORTS, SLOTS & CHASSIS	Front ports: USB 3.2 Type-A Gen 1 (5GB) port USB 3.2 Type-A Gen 1 (5GB) port with PowerShare USB 3.2 Type-C Gen 2 (10GB) port USB 3.2 Type-C Gen 2x2 (20GB) port with PowerShare Universal audio port SD-card slot Rear ports: (2) DisplayPort 1.4 ports (2) USB 2.0 (480MB) ports with SmartPower (2) USB 3.2 Gen 2 (10GB) ports (2) USB 3.2 Type-C Gen 2 (10GB) ports RJ45 Ethernet port, 1GbE Audio Line out Optional Port (VGA, H MI 2.0, DP++ 1.4, Type-C w/DP-Alt mode) RJ45 Ethernet port, 2.5GbE (optional) Full-height Gen5 PCIe x16 slot Full-height Gen3 PCIe x4 slot Full-height Gen 4 PCIe x4 slot(1) M.2 2230 slot (2) M.2 2230/2280 PCIe Gen4 slots for NVMe SSDs (1) M.2 2280 PCIe Gen3 slot for NVMe SSD (5) SATA slots for 2.5/3.5 inch HDD/ODD
POWER OPTIONS	300W internal power supply unit, 92% Efficient PSU,80 Plus Platinum 500W internal power supply unit, 92% Efficient PSU,80 Plus Platinum 750W internal power supply unit, 92% Efficient PSU,80 Plus Platinum

Certificate

He7f13a1146a1418f9e9c7215172d0485501

Warehouse

H0b2da126438747d48c31a6e7d20580310png720x720q50

FAQ

Q1: Are you a factory or a trading company?

A: We are a distributor and trading company.

Q2: What are the guarantees for product quality?

A: We have professional engineers to test each device before shipment. All servers use dust-free IDC room, 100% new appearance and same interior.

Q3: When I receive defective products, how do you solve it?

A: We have professional engineers to help you solve the problem. If the product is defective, we usually return or replace them in the next order.

Q4: How to order in bulk?

A: You can contact our customer service, they will provide you with the best solution and service.

Q5: What are your payment terms?

A: We accept TT. But we provide 30-90 days credit business for quality customers when necessary.

Q6: How long is the warranty? When will the package be sent out after payment?

A: The shelf life of the product is 1 year. For more information, please contact our customer service. After the contract is signed, if there is stock, we will arrange express delivery for you immediately or within 5 days.
