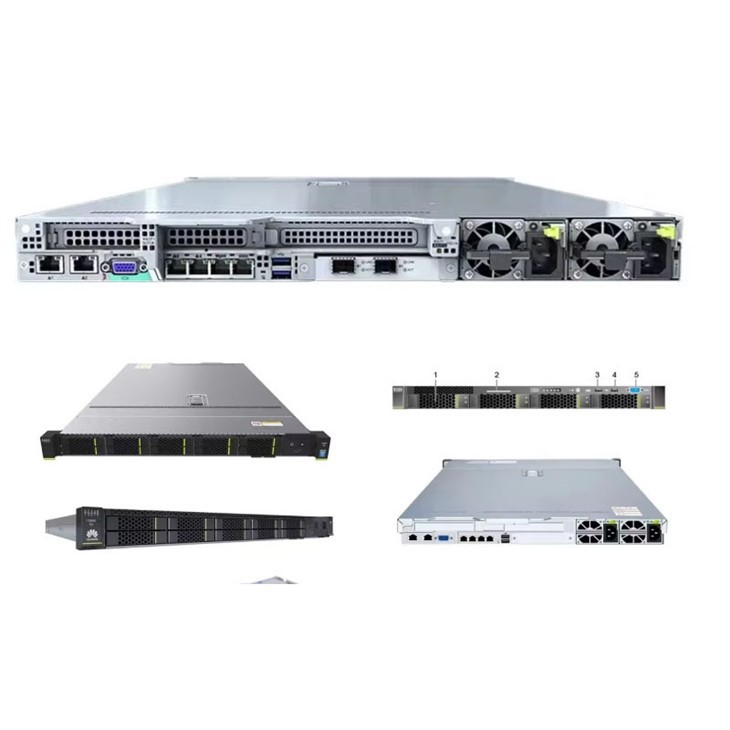

FusionServer 1288H V7 (1288H V7) is a new-generation 1U 2-socket rack server designed for Internet, Internet Data Center (IDC),cloud computing, enterprise applications, and telecom applications. It is also ideal for IT core services, virtualization,high-performance computing, distributed storage, big data processing, and other complex workloads. The 1288H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.

Technical Specifications

Form Factor	1U rack server
Processor	1 or 2 x 4th or 5th Gen Intel® Xeon® Scalable processors with TDP up to 385 W per processor
Chipset	Emmitsburg PCH
Memory	32 x DDR5 DIMMs, with up to 5600 MT/s speed
Local Storage	Supports hot-swappable drives in the following configurations: • 10 x 2.5ʺ drives (6–10 NVMe SSDs and 0–4 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5ʺ SAS/SATA drives/SSDs (2–4 NVMe SSDs and 6–8 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5ʺ SAS/SATA drives/SSDs • 8 x 2.5ʺ SAS/SATA drives/SSDs • 4 x 3.5ʺ SAS/SATA drives/SSDs • 32 x E1.S SSDs* • 2 x M.2 SSDs
RAID	RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
Network	Provides expansion capability of multiple types of networks Supports OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap and PCIe 5.0 are supported
PCIe Expansion	Provides 5 x PCIe slots, including 2 x FlexIO slots dedicated for OCP 3.0 NICs and 3 x PCIe slots, and 2 slots support PCIe 5.0
Fan Module	Provides 8 x hot-swappable counter-rotating fan modules in N+1 redundancy
Power Supply	900 W/1200 W/1500 W/2000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy
Management	The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management • It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management through the lifecycle
OS	FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, openEuler . For more, click here
Security	Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection
Operating Temperature	5ºC to 50ºC (41ºF to 122ºF), compliant with ASHRAE Classes A1, A2, A3, and A4
Certification	CE, UL, CCC, FCC, VCCI, and RoHS
Installation Suite	L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)	Chassis with 3.5ʺ drives: 43 mm x 447 mm x 798 mm (1.69 in. x 17.60 in. x 31.42 in.) Chassis with 2.5ʺ drives: 43 mm x 447 mm x 798 mm (1.69 in. x 17.60 in. x 31.42 in.)

FusionServer 1288H V7

FusionServer 1288H V7 (1288H V7) is a new-generation 1U 2-socket rack server designed for the Internet, Internet Data Center (IDC), core IT services, cloud computing, virtualization, high-performance computing (HPC), enterprise or telecom service applications, and other complex workloads.

The FusionServer 1288H V6

The FusionServer 1288H V6 is a 1U 2-socket rack server. It improves space utilization for data centers and is ideal for high-density deployment scenarios for workloads such as cloud computing, virtualization, high-performance computing (HPC), and big data processing.

The FusionServer 1288H V5

The FusionServer 1288H V5 is a 1U, 2-socket rack server. It is ideal for high-density deployment to process workloads generated by cloud computing virtualization, HPC, and big data processing. It delivers superior performance and excellent scalability while improving space utilization in data centers, driving down the overall expenditure.

Certificate

He7f13a1146a1418f9e9c7215172d0485501

Warehouse

H0f8d372bb03c453dbe2c7257da58864aG

FAQ

Q1: Are you a factory or a trading company?

A: We are a distributor and trading company.

Q2: What are the guarantees for product quality?

A: We have professional engineers to test each device before shipment. All servers use dust-free IDC room, 100% new appearance and same interior.

Q3: When I receive defective products, how do you solve it?

A: We have professional engineers to help you solve the problem. If the product is defective, we usually return or replace them in the next order.

Q4: How to order in bulk?

A: You can contact our customer service, they will provide you with the best solution and service.

Q5: What are your payment terms?

A: We accept TT. But we provide 30-90 days credit business for quality customers when necessary.

Q6: How long is the warranty? When will the package be sent out after payment?

A: The shelf life of the product is 1 year. For more information, please contact our customer service. After the contract is signed, if there is stock, we will arrange express delivery for you immediately or within 5 days.
